Hutama Survey

RP Call

Detail Produk Leica Auto Level NA 332

Key Benefits:

Quick and easy measurements
Unique design and highest quality of results for levelling needs
Manufactured for the most rugged sites and the harshest conditions
Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
Unbeaten service offering

Leica	NA320	NA324	NA332
Standard deviation for 1 km double levelling (ISO17123-2)	2.5 mm	2.0 mm	1.8 mm
Telescope
Telescope image	upright
Magnification	20 x	24 x	32 x
Objective aperture	36 mm
Shortest target distance from instrument axis	< 1.0 m
Field of view at 100 m	< 2.1 m
Multiplication factor	100
Additive constant 0	0
Compensator
Working range	± 15’
Setting accuracy (standard deviation)	< 0.5’’
Sensitivity	8’ / 2 mm
Horizontal circle
Graduation	360°
Graduation interval	1°
Weight (net)	1.5 kg
Operating temperature range	–20°C to +40°C

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Leica NA 324

RP Call

Detail Produk Leica Auto Level NA 324

Key Benefits:

Quick and easy measurements
Unique design and highest quality of results for levelling needs
Manufactured for the most rugged sites and the harshest conditions
Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
Unbeaten service offering

Leica	NA320	NA324	NA332
Standard deviation for 1 km double levelling (ISO17123-2)	2.5 mm	2.0 mm	1.8 mm
Telescope
Telescope image	upright
Magnification	20 x	24 x	32 x
Objective aperture	36 mm
Shortest target distance from instrument axis	< 1.0 m
Field of view at 100 m	< 2.1 m
Multiplication factor	100
Additive constant 0	0
Compensator
Working range	± 15’
Setting accuracy (standard deviation)	< 0.5’’
Sensitivity	8’ / 2 mm
Horizontal circle
Graduation	360°
Graduation interval	1°
Weight (net)	1.5 kg
Operating temperature range	–20°C to +40°C

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Leica NA 320

RP Call

Detail Produk Leica Auto Level NA 320

Key Benefits:

Quick and easy measurements
Unique design and highest quality of results for levelling needs
Manufactured for the most rugged sites and the harshest conditions
Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
Unbeaten service offering

Leica	NA320	NA324	NA332
Standard deviation for 1 km double levelling (ISO17123-2)	2.5 mm	2.0 mm	1.8 mm
Telescope
Telescope image	upright
Magnification	20 x	24 x	32 x
Objective aperture	36 mm
Shortest target distance from instrument axis	< 1.0 m
Field of view at 100 m	< 2.1 m
Multiplication factor	100
Additive constant 0	0
Compensator
Working range	± 15’
Setting accuracy (standard deviation)	< 0.5’’
Sensitivity	8’ / 2 mm
Horizontal circle
Graduation	360°
Graduation interval	1°
Weight (net)	1.5 kg
Operating temperature range	–20°C to +40°C

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Level Pentax AP-228

RP Call

Detail Produk Pentax Auto Level AP-228

Very Short Focusing Distance: 0.3m
• Optimal for close range work
• Robust construction: Metal top cover
• Weather and Dust Resistance: IP55
• An easy-to-read horizontal circle
• Magnetic damped automatic compensator
for rapid and accurate results
• Light Weight: 1.25 kg

Model	AP-288
Telescope
Magnification	28x
Objective aperture	30 mm
Resolving power	3″
Field of view	1°20′
Minimum focus distance	0,3 m
Accuracy
Standart deviation (1 km double run leveling)	± 1,5 mm
Automatic compensator
Compensation range	± 15′
Type	magnetic
Circular vial
Sensitivity	8’/2 mm
Horizontal Circle Graduating	1°
Horizontal angle range	360°
Watertight	IP55

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Geo Fennel FAL 24

RP Call

Detail Produk Geo Fennel FAL 24

Features

Metal housing
Mirror for easy reading of bubble
Suitable for both flat and domed head tripods

Technical data

Mean error for 1 km double levelling	2,0 mm
Telescope magnification	24 x
Objective diameter	38mm
Shortest focussing distance	0,3m
Working range of compensator	±15′
Levelling accuracy	±0,5
Circular bubble	8’/2mm
Horizontal circle	400 gon/360°
Dust / water protection	IP 54
Weight	1,5 kg

Lengkap Set: 1 Unit Almunium Tripod 1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Geo Fennel FAL 32

RP Call

Detail Produk Geo Fennel FAL 32

Technical data

Mean error for 1 km double levelling	1,0 mm
Telescope magnification	32 x
Objective diameter	38mm
Shortest focussing distance	0,3m
Working range of compensator	±15′
Levelling accuracy	±0,5
Circular bubble	8’/2mm
Horizontal circle	400 gon/360°
Dust / water protection	IP 54
Weight	1,5 kg

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Nikon AS-2

RP Call

Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : hutamasurveying@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia

Deskripsi :
The Nikon AS-2 and AS-2C auto-levels provide a high degree of accuracy for a variety of survey applications, including elevation control and monitoring.
These ergonomically designed, waterproof levels feature powerful telescopes, optional horizontal circle (C) and endless horizontal drive for smooth precision pointing and angular measurement. In addition to this, a penta-prism mirror enables the viewing of a circular bubble as an erect image.

MAIN FEATURES		TECHNICAL SPECIFICATIONS
Waterproof design Superb Nikon optics with powerful telescope Endless horizontal drive and Optional horizontal circle (C) Optional Parallel Micrometer & Diagonal Eyepiece Optional High- and Low-power Eyepiece lenses		Magnification: 34x Aperture: 45 mm Min Focus distance: 1.0m Accuracy: ± 0.8mm (1km double run leveling)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Nikon AE-7

RP Call

Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : hutamasurveying@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia

Deskripsi :
The Nikon AE-7 auto-level provides a high degree of accuracy for a variety of survey applications, including elevation control and monitoring.
This ergonomically designed, waterproof level features a powerful telescope, as well as endless horizontal drive for smooth precision pointing. In addition, a penta-prism mirror enables the viewing of a circular bubble as an erect image.

MAIN FEATURES		TECHNICAL SPECIFICATIONS
Waterproof design Superb Nikon optics with powerful telescope Endless horizontal drive and Optional horizontal circle (C) Optional Parallel Micrometer & Diagonal Eyepiece Optional High- and Low-power Eyepiece lenses		Magnification: 30x Aperture: 40 mm Min Focus distance: 0.3m Accuracy: ± 1.0 mm (1km double run leveling)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Nikon AP-8

RP Call

Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : hutamasurveying@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia

Deskripsi :
The Nikon AP-8 auto-level provides a high degree of accuracy and features a friction brake for faster operation.
An endless horizontal drive (with control knobs on both sides) as well as its water-resistant construction (for use under dusty conditions or in light rain) all contributes to enhanced in-field operability and quality surveying.

MAIN FEATURES		TECHNICAL SPECIFICATIONS
Waterproof design Superb Nikon optics with powerful telescope Endless horizontal drive Horizontal circle Optional diagonal eyepiece		Magnification: 28x Aperture: 30 mm Min Focus distance: 0.75m Accuracy: ± 1.5 mm (1km double run leveling)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Nikon AC-2S

RP Call

Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : hutamasurveying@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia

Deskripsi :
The economical, compact and lightweight AC-2S automatic level features a built-in compensator with magnetic damper that automatically levels line of sight for quality surveying. The unit features a friction brake, as well as endless horizontal drive for faster in-field operation.

MAIN FEATURES		TECHNICAL SPECIFICATIONS
• Waterproof design • Endless horizontal drive • Horizontal circle		• Magnification: 24x • Aperture: 30 mm • Min Focus distance: 0.75m • Accuracy: ± 2.0 mm (1km double run leveling)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Nikon AX-2S

RP Call

The economical, compact and lightweight AX-2S automatic level features a built-in compensator with magnetic damper that automatically levels line of sight. Its airtight design enables quality surveying in dusty conditions or light rain.

MAIN FEATURES		TECHNICAL SPECIFICATIONS
• Waterproof design • Clear Nikon optics • Horizontal circle		• Magnification: 20x • Aperture: 30 mm • Min Focus distance: 0.75m • Accuracy: ± 2.5 mm (1km double run leveling)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Sokkia B40A

RP Call

Model	B40A
Telescope
Length	215mm (8.46in.)
Magnification	24x
Objective aperture	32mm (1.26in.)
Resolving power	4″
Field of View (at 100m/328ft.)	1°25′ (2.5m / 8.2ft.)
Minimum focus	0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center
Image	Erect
Reticle pattern	Cross line
Stadia constant	0
Stadia ratio	100
Focusing knob	1-speed
Sighting aid	Gun sight
Lens hood	–
Accuracy (standard deviation for 1km double run leveling)
Without micrometer	2.0mm (0.08in.)
With micrometer	–
Compensator
Type	Pendulum compensator with magnetic damping system
Setting accuracy	0.5″
Working range	±15′
Circular level
Sensitivity	10′ / 2mm
Mirror	Plane mirror
Horizontal circle
Diameter	103mm (4.1 in.)
Graduations	1° / 1gon
General
Horizontal motion drive	Clampless, endless, double-sided knobs
Water resistance	IPX6 (EC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Width	130mm (5.12in.)
Length	215mm (8.46in.)
Height	135mm (5.31in.)
Weight	1.7kg (3.7 lb.)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

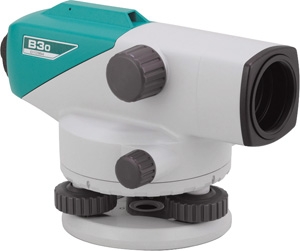

Jual Automatic Level Sokkia B30

RP Call

Model	B30
Telescope
Length	215mm (8.46in.)
Magnification	28x
Objective aperture	36mm (1.42in.)
Resolving power	3.5″
Field of View (at 100m/328ft.)	1°25′ (2.5m / 8.2ft.)
Minimum focus	0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center
Image	Erect
Reticle pattern	Cross line
Stadia constant	0
Stadia ratio	100
Focusing knob	1-speed
Sighting aid	Peep sight
Lens hood	–
Accuracy (standard deviation for 1km double run leveling)
Without micrometer	1.5mm (0.06in.)
With micrometer	–
Compensator
Type	Pendulum compensator with magnetic damping system
Setting accuracy	0.5″
Working range	±15′
Circular level
Sensitivity	10′ / 2mm
Mirror	Plane mirror
Horizontal circle
Diameter	103mm (4.1 in.)
Graduations	1° / 1gon
General
Horizontal motion drive	Clampless, endless, double-sided knobs
Water resistance	IPX6 (EC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Width	130mm (5.12in.)
Length	215mm (8.46in.)
Height	140mm (5.51in.)
Weight	1.7kg (3.7 lb.)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Sokkia B20

RP Call

Model	B20
Telescope
Length	215mm (8.46in.)
Magnification	32x
Objective aperture	42mm (1.65in.)
Resolving power	3″
Field of View (at 100m/328ft.)	1°20′ (2.3m / 7.5ft.)
Minimum focus	0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center
Image	Erect
Reticle pattern	Wedge
Stadia constant	0
Stadia ratio	100
Focusing knob	2-speed
Sighting aid	Peep sight
Lens hood	Retractable
Accuracy (standard deviation for 1km double run leveling)
Without micrometer	0.7mm (0.03in.)
With micrometer	0.5mm (0.02in.)
Compensator
Type	Pendulum compensator with magnetic damping system
Setting accuracy	0.3″
Working range	±15′
Circular level
Sensitivity	10′ / 2mm
Mirror	Pentaprism
Horizontal circle
Diameter	103mm (4.1 in.)
Graduations	1° / 1gon
General
Horizontal motion drive	Clampless, endless, double-sided knobs
Water resistance	IPX6 (EC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Width	130mm (5.12in.)
Length	215mm (8.46in.)
Height	140mm (5.51in.)
Weight	1.85kg (4.1 lb.)

Lengkap Set:
1 Unit Almunium Tripod

1 Unit Rambu Ukur / Bak Ukur / Mistar Ukur

Jual Automatic Level Topcon AT-B4A

RP Call

hree Finest Models Satisfy All Levels of Requirements

High-precision model
Magnification:32x Aperture:42mm Accuracy:0.7mm Minimum Focus:20cm Protection:IPX6 Weight:1.85kg

Versatile model for surveying, engineering and construction
Magnification:28x Aperture:36mm Accuracy:1.5mm Minimum Focus:20cm Protection:IPX6 Weight:1.7kg

Magnification:28x<br /> Aperture:36mm<br /> Accuracy:1.5mm<br /> Minimum Focus:20cm<br /> Protection:IPX6<br /> Weight:1.7kg

Economical model for engineering and construction
Magnification:24x Aperture:32mm Accuracy:2.0mm Minimum Focus:20cm Protection:IPX6 Weight:1.7kg

Magnification:24x<br /> Aperture:32mm<br /> Accuracy:2.0mm<br /> Minimum Focus:20cm<br /> Protection:IPX6<br /> Weight:1.7kg

Rapid, Stable, and Durable Compensator

The compensator of AT-B series incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy even in the harshest environmental conditions. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

20cm (7.9 in.) – Ultra-Short Focusing Range

The AT-B series can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.

2-Speed Focus (AT-B2)

Rotation speed of the focusing knob is automatically switched between coarse and fine, allowing for quick and precise focusing.

Clampless, Endless Fine Horizontal Adjustments

Fine horizontal knobs located on both sides of instrument can be operated without clamping, speeding up aiming procedures to the staff and other objects.

Easy-to-See Circular Level

Circular level can be viewed via integrated pentagonal prism (AT-B2) or plane mirror (AT-B3/B4) without changing your eye height.

Horizontal Circle for Angle Measurement

Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature of the horizontal circle allows you to read any angle from zero. The circle is covered for protection against dirt and scratch. The readout window is located below the eyepiece for quick reading.

All-Weather Dependability

With the IPx6 rating, the instrument is protected against powerful water jets from all directions, meaning the AT-B series withstands a sudden shower or torrential rainfall. The advanced protection design not only prevents water penetration, but also deters clouding or condensation inside the telescope.

Distance, Angle, and Height Measurement

In addition to height and angle, distance to the staff can be simultaneously measured using stadia lines. This is accomplished by reading the length of staff between two stadia lines and multiplying the value by 100.

Optional Accessories

Diagonal Eyepiece
DE16 (AT-B2) / DE22 (AT-B3/B4)
Facilitates your works when the level is set at low height or in confined spaces.

Optical Micrometer OM5(F) (AT-B2)
Addition of the optical micrometer to the AT-B2 allows for 0.1mm (OM5) or 0.001ft. (OM5F) reading of staffs and improves accuracy to 0.5mm for 1km double run leveling. This combination is ideal for precise leveling.

40x Eyepiece EL5 (AT-B2)
Increases magnification of AT-B2 to 40x. Replaces standard eyepiece.

AT-Bseries SPECIFICATIONS

		AT-B2	AT-B3	AT-B4
Telescope
Length		215mm (8.46 in.)
Magnification		32X	28X	24X
Objective Aperture		42mm (1.65 in.)	36mm (1.42 in.)	32mm (1.26 in.)
Resolving Power		3″	3.5″	4″
Field of View (at 100m/328ft.)		1°20′ (2.3m / 7.5ft.)	1°25′ (2.5m / 8.2ft.)
Minimum Focus		0.2m (7.9 in.) from end of telescope 0.3m (1ft.) from instrument center
Image		Erect
Stadia Constant		0
Stadia Ratio		100
Accuracy (1km double run leveling)
Without Micrometer		0.7mm (0.03 in.)	1.5mm (0.06 in.)	2.0mm (0.08 in.)
With Micrometer		0.5mm (0.02 in.)	n/a
Compensator
Type		Pendulum compensator with magnetic damping system
Setting Accuracy		0.3″	0.5″
Working Range		±15′
Circular level
Sensitivity		10′ / 2mm
Horizontal circle
Diameter		103mm (4.1 in.)
Minimum Division		1°/ 1gon
General
Water Resistance		IPX6 (IEC 60529:2001)
Operating Temperature		-20℃ to +50℃ (-4°F to +122°F)
Size	Width	130mm (5.12 in.)
	Length	215mm (8.46 in.)
	Height	140mm (5.51 in.)		135mm (5.31 in.)
Weight		1.85kg (4.1 lbs.)	1.7kg (3.7 lbs.)

Jual Automatic Level Topcon AT-B3

RP Call

hree Finest Models Satisfy All Levels of Requirements

High-precision model
Magnification:32x Aperture:42mm Accuracy:0.7mm Minimum Focus:20cm Protection:IPX6 Weight:1.85kg

Versatile model for surveying, engineering and construction
Magnification:28x Aperture:36mm Accuracy:1.5mm Minimum Focus:20cm Protection:IPX6 Weight:1.7kg

Economical model for engineering and construction
Magnification:24x Aperture:32mm Accuracy:2.0mm Minimum Focus:20cm Protection:IPX6 Weight:1.7kg
