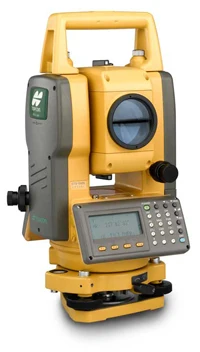

Jual Total Station Tocon GTS 255n

Jual Total Station Tocon GTS 255n

Jual Total Station Tocon GTS 255n

RP.Call

Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : romeo_izki@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia

Specification:

Telescope
Length	150 Millimeters
Objective Lens Diameter	45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1 degree 30 seconds
Resolve Power	3"
Min. Focus Distance	4.265 ft / 1.3 meters
Measurement Range
1 Prism	6500 ft, 2000 meters
3 Prism	8800 ft, 2700 meters
Measuring Accuracy
Prism Mode	+/-(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement time	1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method	Absolute Reading
Detection	2 horizontal, 1 vertical
Minimum reading	1"/5" or 1/5 mgon
Tilt Correction
Type	Single Axis
MethTelescope Magnification 30x Distance Measurement Single Prism 2,300m Measuring Time Fine: 1.2s Normal: 0.7s Angle Measurement Accuracy 5" Display Interface Graphics LCD 160 x 64 dots Internal Memory 24,000 pts Interface RS-232C Battery Working Time 9h General Dust and Water Protection IP54 od	Liquid surface reflective profile sensor reading type
Compensating Range	+/-3'
Correction Unit	1 arc sec, N/A
Computer Unit
Display	2 screen, dot matrix graphic LCD display
Power
Approx. Battery Life	9 hrs including distance measurement, 40 hrs Angle measurement only
