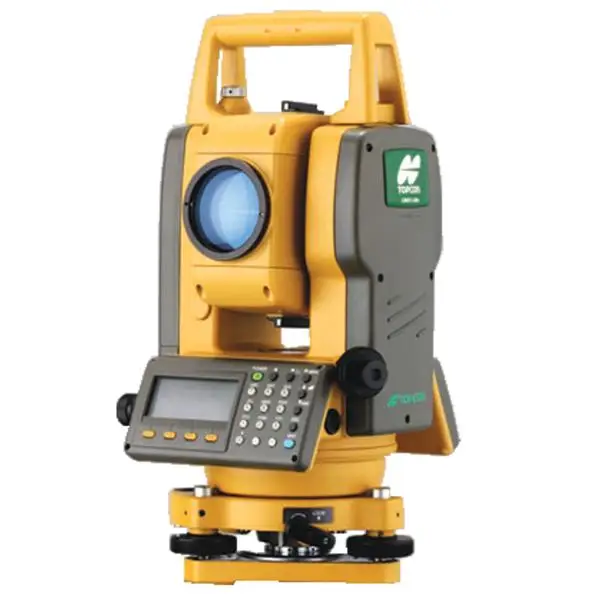

Jual Total Station Topcon GTS 102N
Informasi Produk & Harga Hubungi :
Contact Person
Nama : Rizki
HP / Whatshapp : 087820133836
Tel Kantor : 021-58909739
Fax : 021-29449921
Email : romeo_izki@yahoo.com
Pin Blacberry : 5D701BAA
Alamat : Jl. Taman Alfa Indah Blok F.6 No.4, Kembangan, 11640, Indonesia
Specification:
| Telescope | |
Length
|
150 Millimeters |
| Objective Lens Diameter | 45mm (EDM:50mm) |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1 degree 30 seconds |
| Resolve Power | 3" |
| Min. Focus Distance | 4.265 ft / 1.3 meters |
| Measurement Range | |
| 1 Prism | 6500 ft, 2000 meters |
| 3 Prism | 8800 ft, 2700 meters |
| Measuring Accuracy | |
| Prism Mode | +/-(2mm + 2ppm x D)m.s.e. fine, N/A |
| Measurement time | 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A |
| Angle Measurement | |
| Method | Absolute Reading |
| Detection | 2 horizontal, 1 vertical |
| Minimum reading | 1"/5" or 1/5 mgon |
| Tilt Correction | |
| Type | Single Axis |
| Method | Liquid surface reflective profile sensor reading type |
| Compensating Range | +/-3' |
| Correction Unit | 1 arc sec, N/A |
| Computer Unit | |
| Display | 2 screen, dot matrix graphic LCD display |
| Power | |
| Approx. Battery Life | 9 hrs including distance measurement, 40 hrs Angle measurement only |
